Advanced Gauges and Instruments for .NET

NOV Gauge for .NET is a feature-rich instrumentation library which contains controls for the display of radial (circular) and linear gauges, knobs, indicators, and numeric displays. It delivers a rich library of fully managed .NET controls designed for seamless integration in Blazor, WinForms, WPF, and Mac applications.

NOV Gauge for .NET is an indispensable tool in the following application scenarios:

• Dashboards and KPI Visualization – display key performance indicators and real-time business metrics with rich, interactive gauges.
• Industrial and Process Control Interfaces – monitor and control equipment and system states using dials, thermometers, LEDs, and numeric indicators.
• Scientific and Engineering Applications – visualize measurements, simulations, and time-based data with stopwatches, timers, and clocks.

NOV Gauge for .NET features:

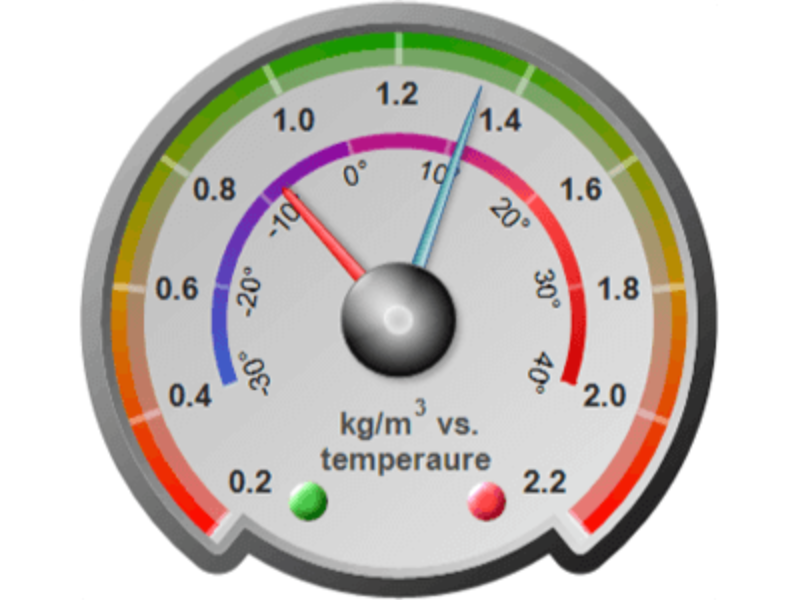

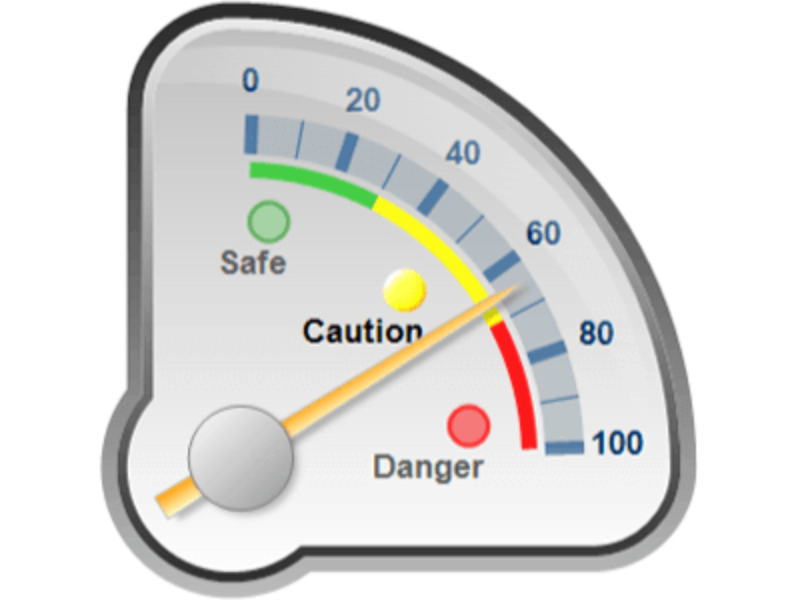

• Radial and Circular Gauges – support circular layouts with customizable begin and sweep angles, multiple scales, and rich pointer and range options.

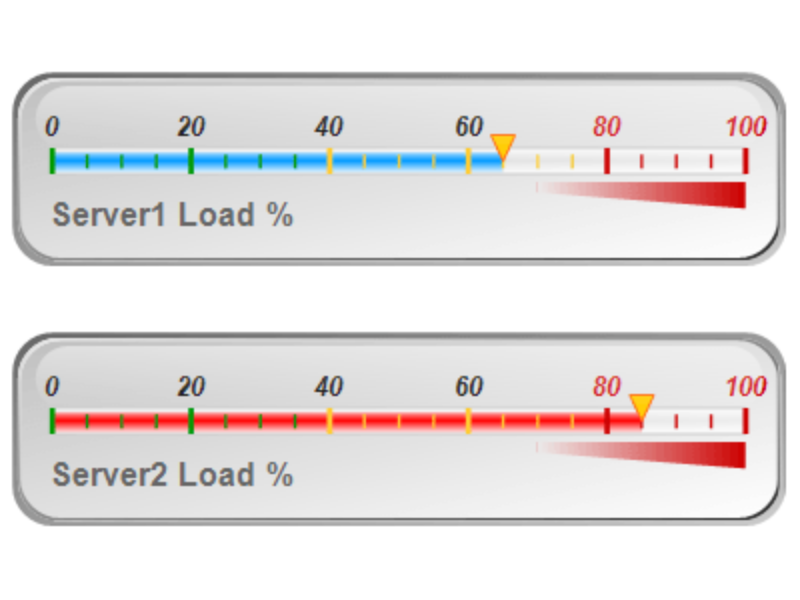

• Linear Gauges – horizontal or vertical gauges with full control over axis positioning, scales, ranges, and indicators.

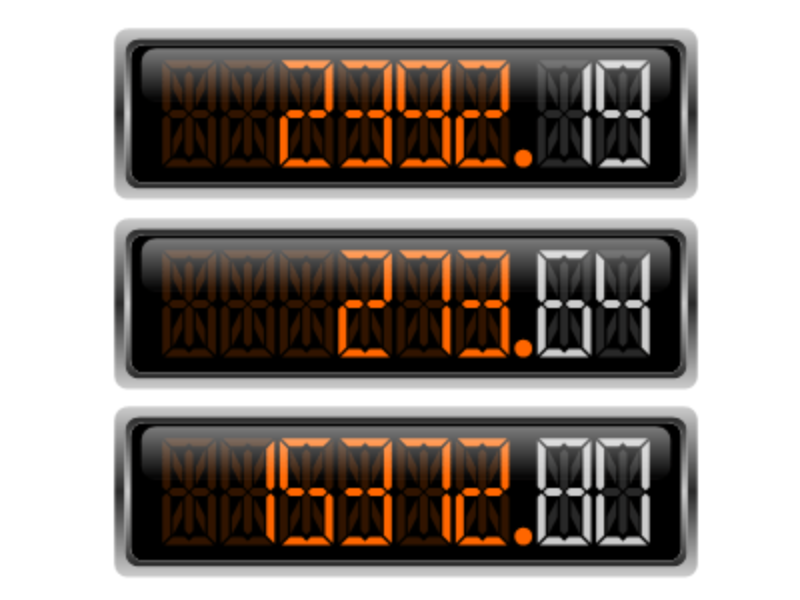

• Numeric Displays – digital LED-style indicators with 7-segment, 14-segment, or matrix display types.
• Range Indicators – display value ranges using color-coded sections, gradients, and advanced appearance options.
• Pointers – add multiple needles, markers, or bar pointers with independent value and style settings.
• Multiple Gauge Areas and Combinations – create complex instruments with several gauge areas combined into one surface.
• Advanced Gauge Axis Model and Scales Configuration – define multiple axes with precise control over ticks, labels, ranges, and layout.
• Embed in Other NOV Products – integrate seamlessly into NOV Diagram for .NET or NOV Text Editor for .NET.
